| Parameter | Value |
|---|---|
| Max flow rate (m³/h) | Up to 77 |
| Max differential pressure (bar) | Up to 8 |
| Max media temperature (°C) | Up to 130 |
| Port size (mm diameter) | 25 – 100 |
| Available pump head displacements | 10 options across 5 gearbox modules |
| Wetted parts material | 316L stainless steel |
| Elastomers | EPDM (standard) |
Configuration Options
- Available as bare shaft pump or baseplate-mounted unit complete with coupling, guard, gear motor, and shroud for plug-and-play installation
- Optional heating/cooling front covers for processes handling products that tend to solidify at low temperatures, such as sugar solutions, butter, margarine, gels, and lotions
- Fully front-loading, self-setting EasyFit shaft seals — no adjustment or retiming required when changing rotors
- High-precision components are interchangeable across pumps of the same size
Construction Notes

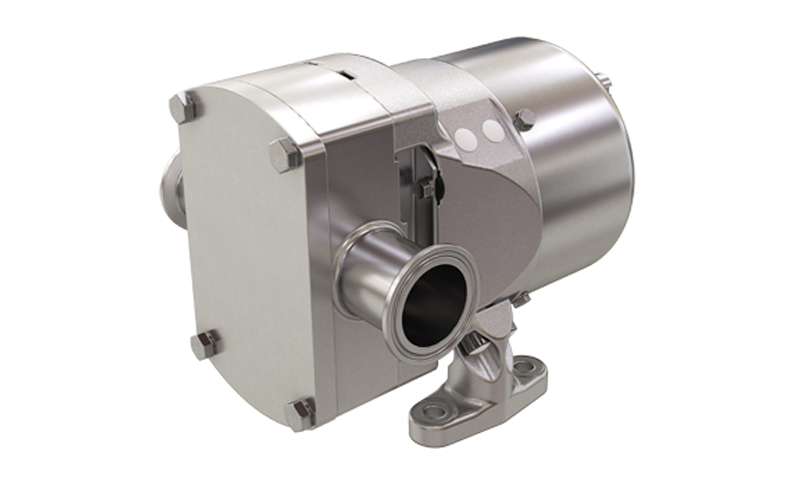

All wetted parts are manufactured in 316L stainless steel with an all-stainless exterior. The one-piece bearing housing supports heavy-duty L10 tapered roller bearings with a minimum rated life of 20,000 hours, providing stable shaft retention and reducing the risk of pump head contact. Seal faces are in direct contact with the media, ensuring effective self-lubrication and cleanability. All pump parts including the rotor case and precision rotors are manufactured in-house, ensuring full spare parts interchangeability.
Installation Notes
The pump can be supplied ready-to-install on a baseplate assembly. Ensure suction and discharge pipework is adequately supported to avoid imposing loads on the pump casing. For processes involving media that may solidify, the optional front cover heating/cooling circuit should be connected and commissioned prior to start-up.
